Perfect for fabricators, weld shops, or those that 'know a guy'!
Digital product that includes all cut files and bend drawings to have fabricated at your local shop with CNC laser/plasma and sheet metal bending capability for around $500.

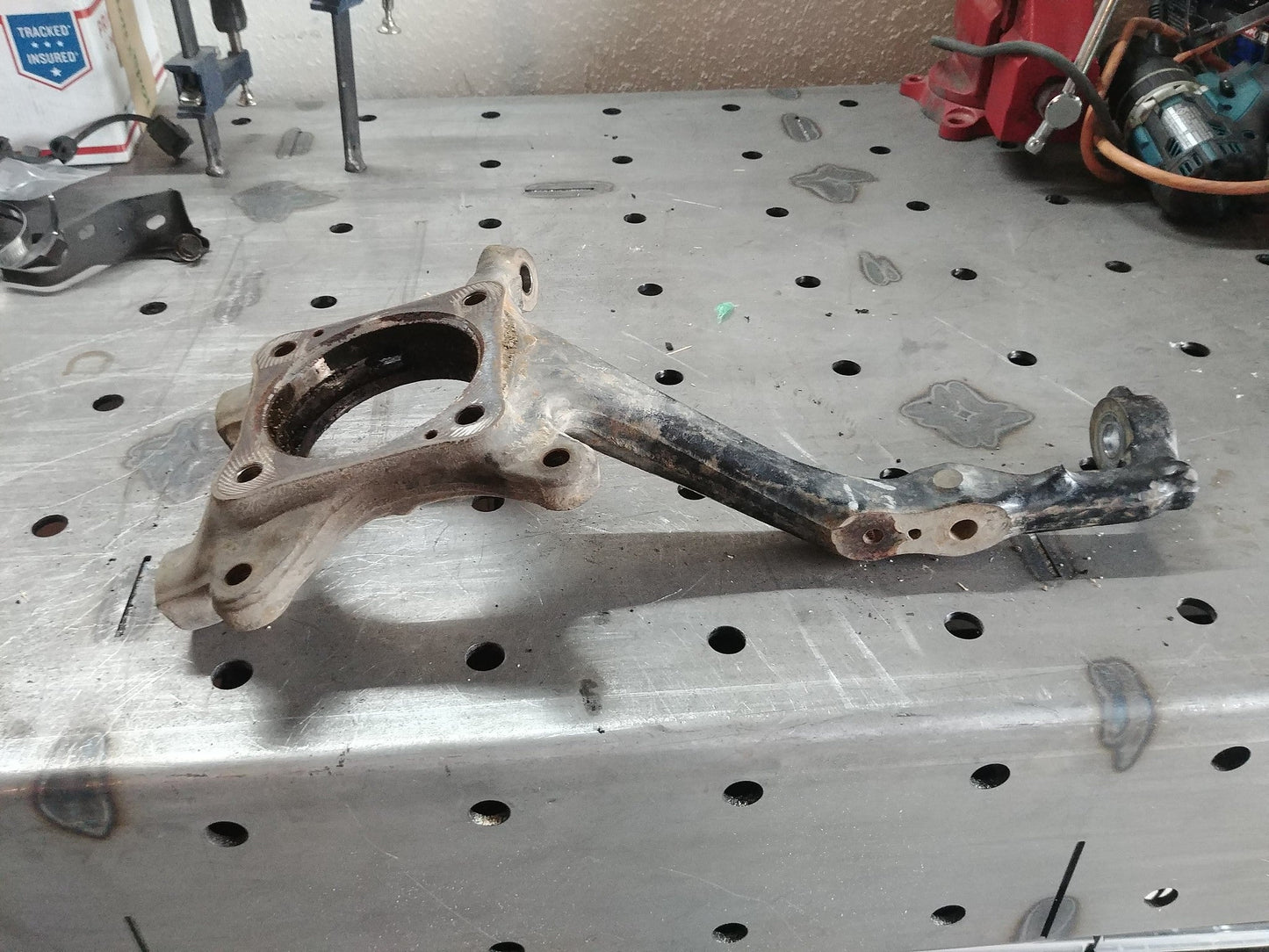

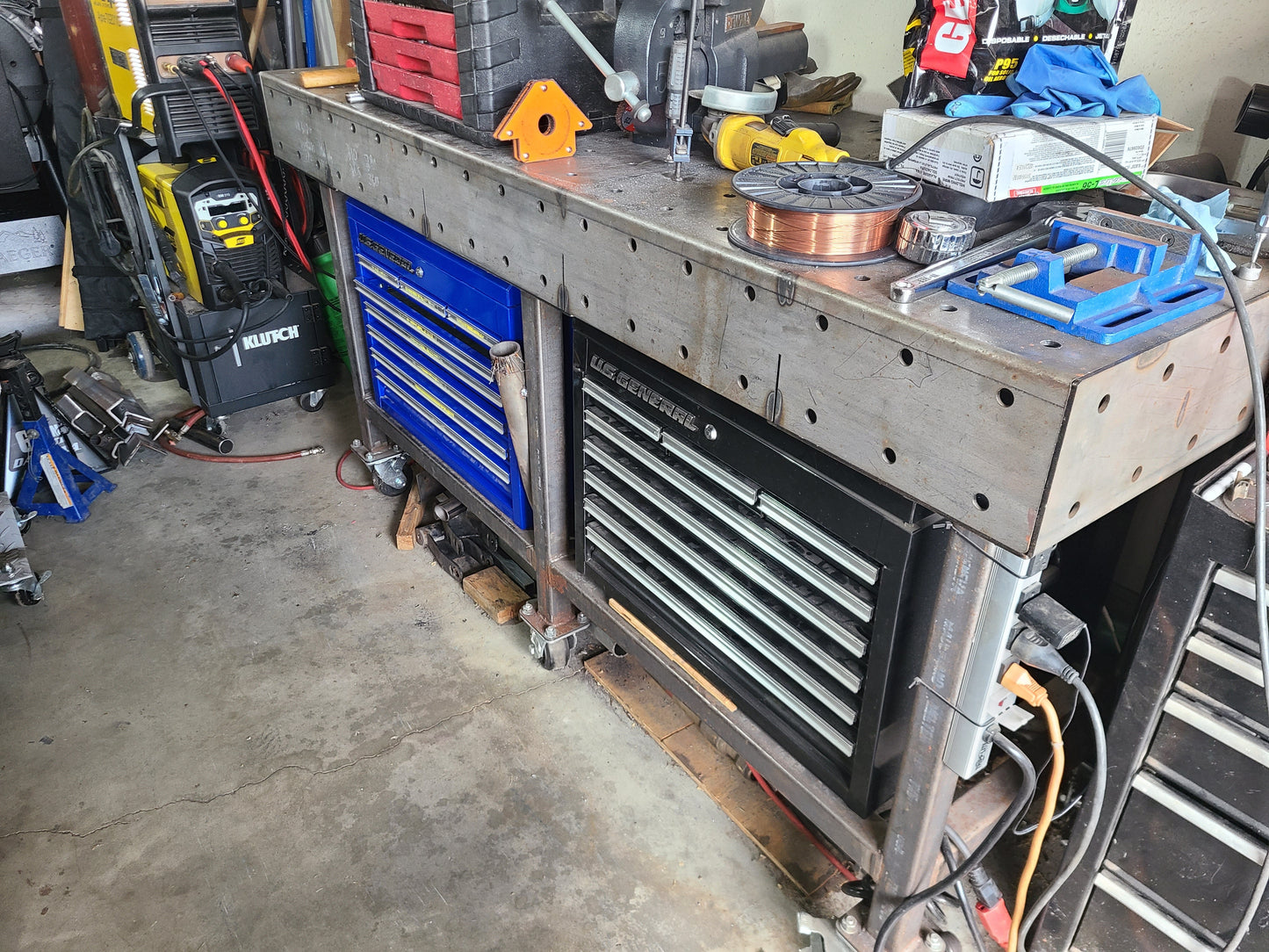

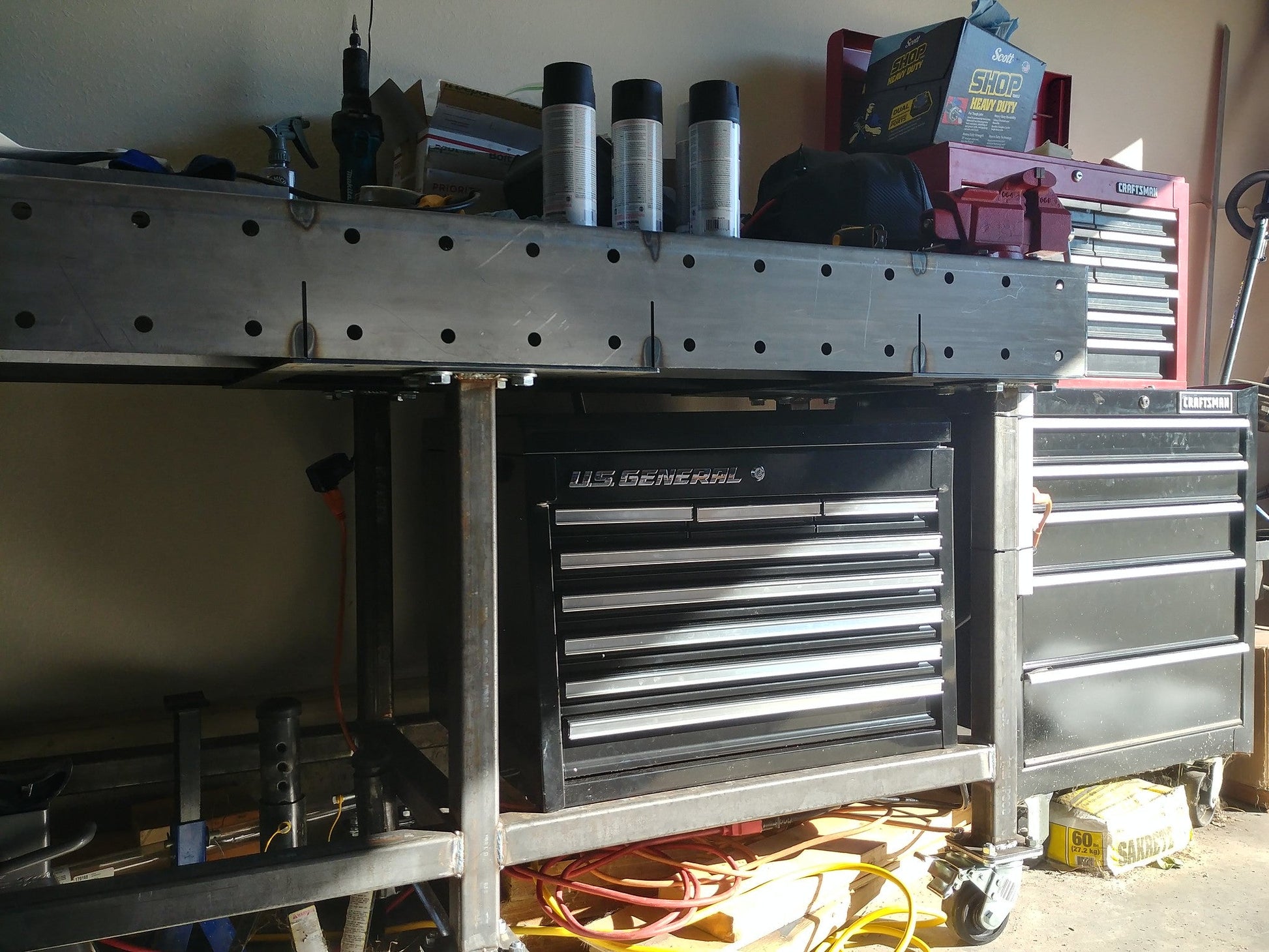

Table includes industry standard 16mm/.630" holes at 4" spacing. Similiar weld tables are 2" spacing but this reduces the number of holes small parts can fall through if you are using it as a mechanic workbench and some weld accessories can still work with it like vice mounts. Harbor Freight toolboxes happen to fit underneath too.

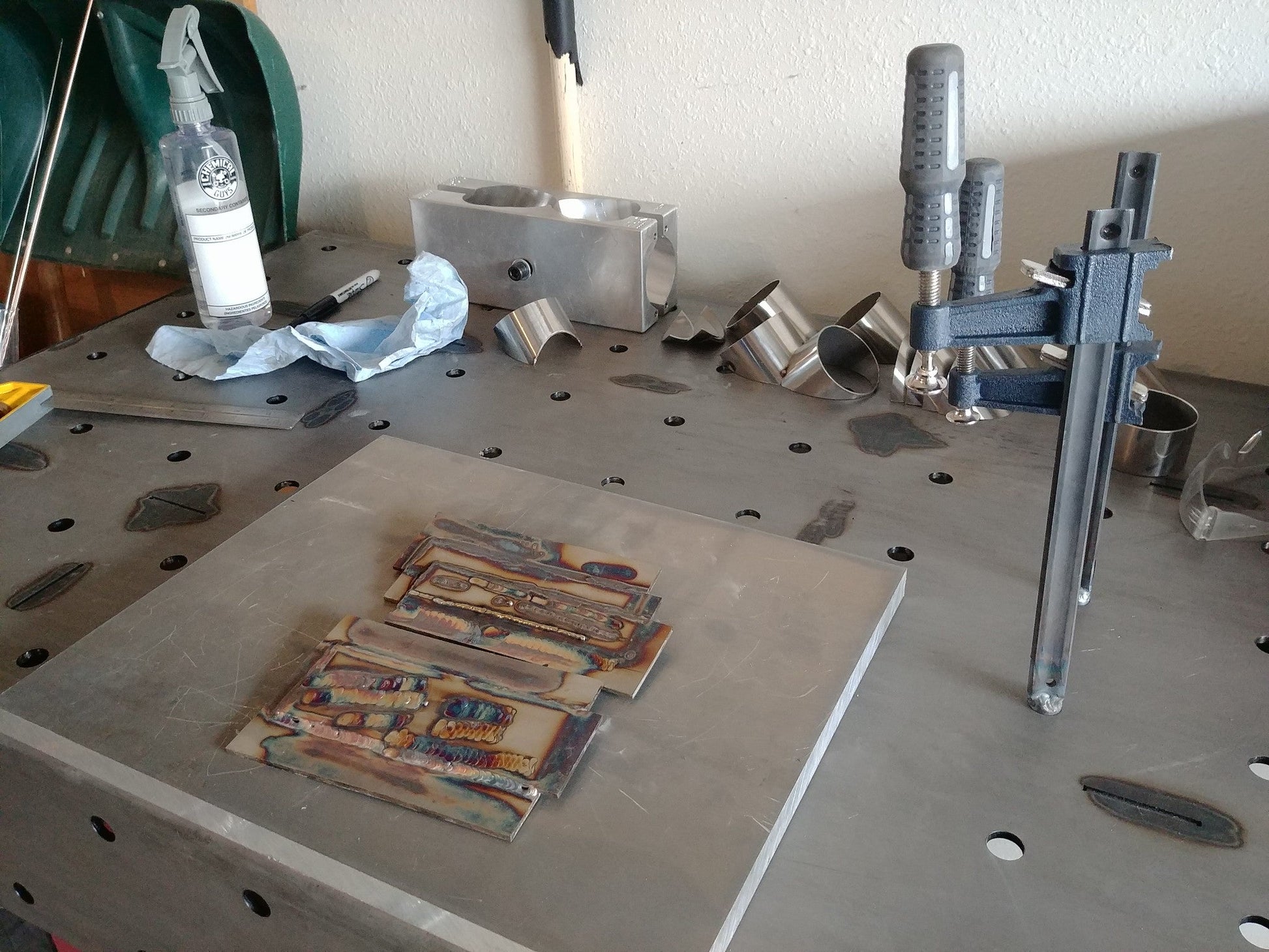

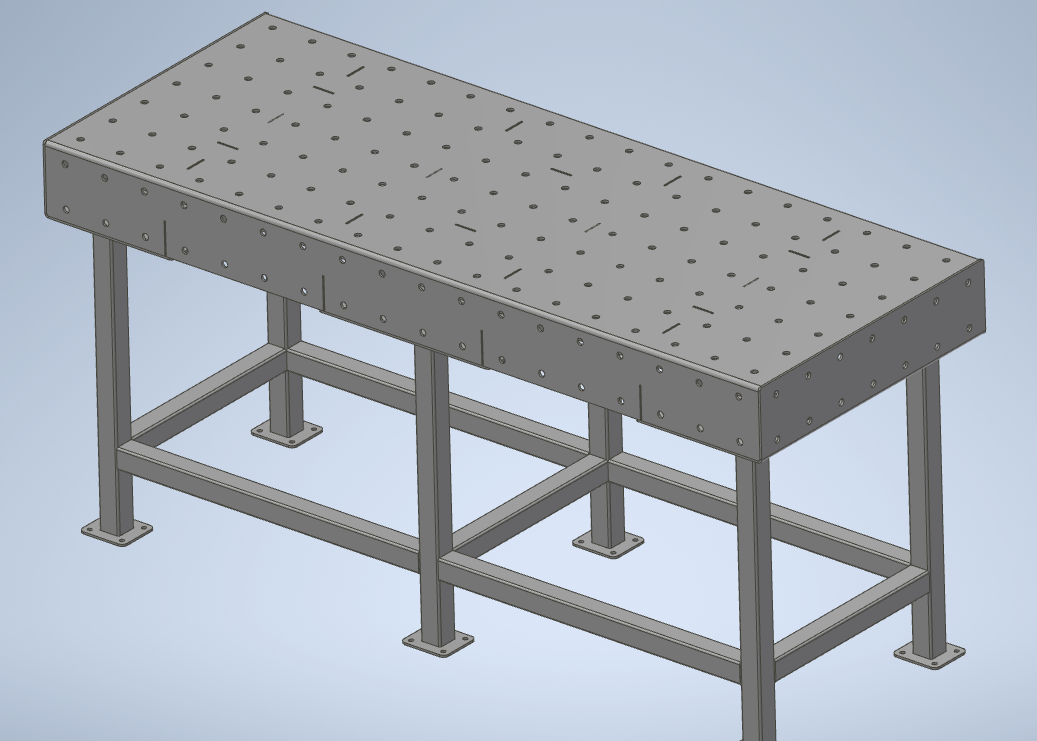

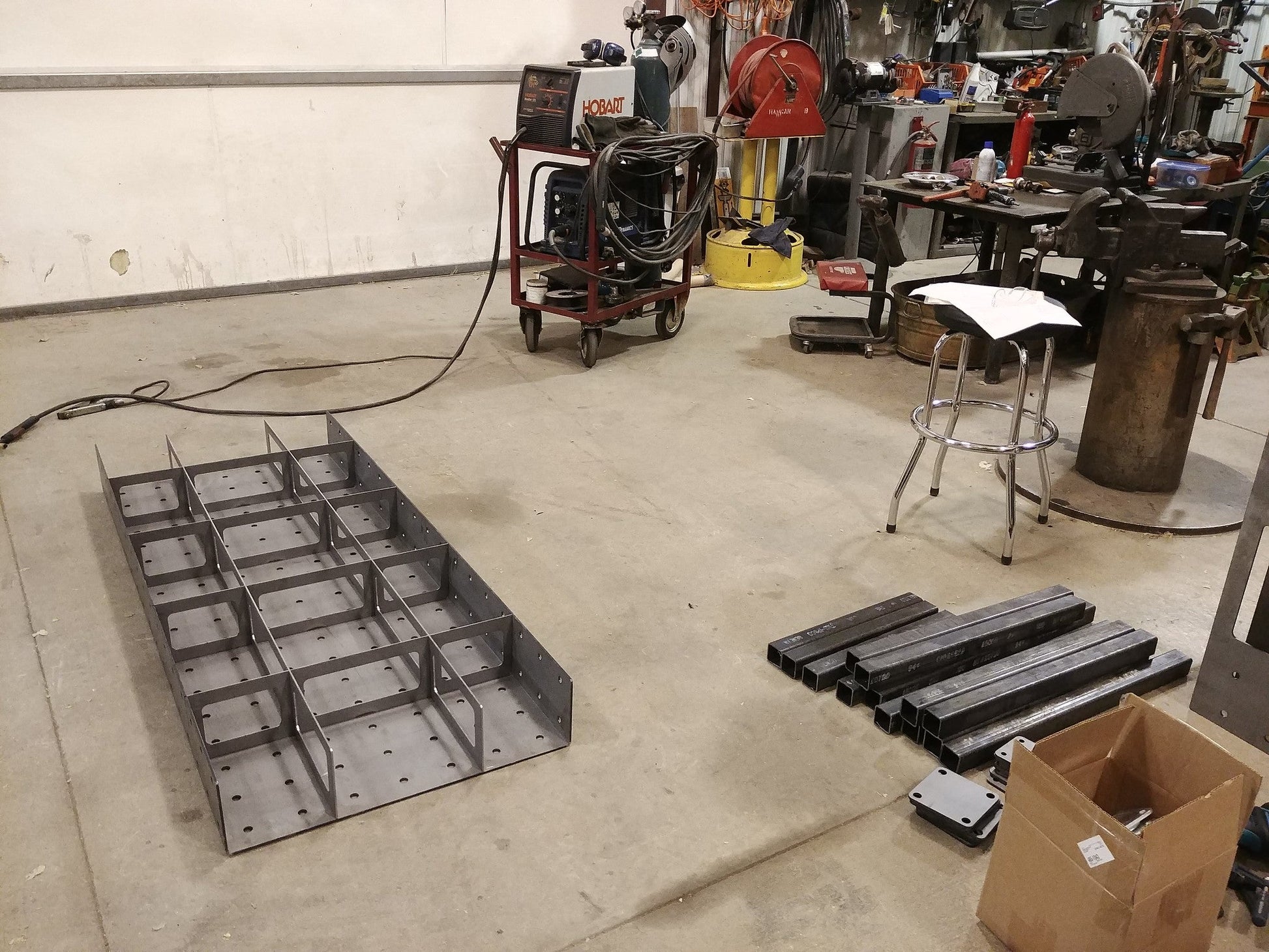

Table measures 6' x 28" deep. Total weight is 365lbs. Since these are manufacturing files you should be able to modify or have a shop modify the files however you want to some degree, but if you want a custom table size, contact me. For example, can have one side of the holes removed for mechanic work and the other side with holes for a smaller fixture table. Or bolt an aluminum sheet on top for heat absorption when welding.

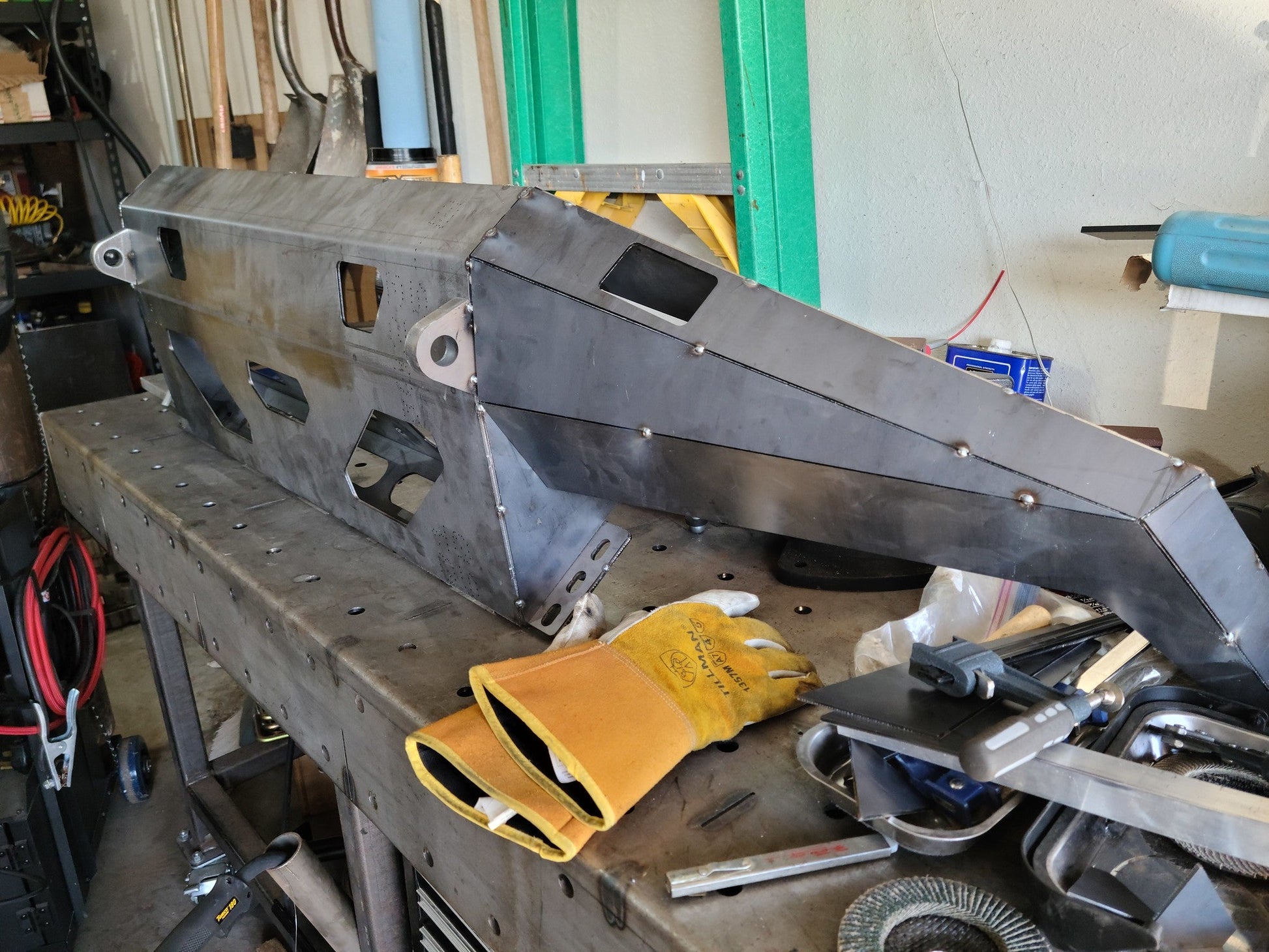

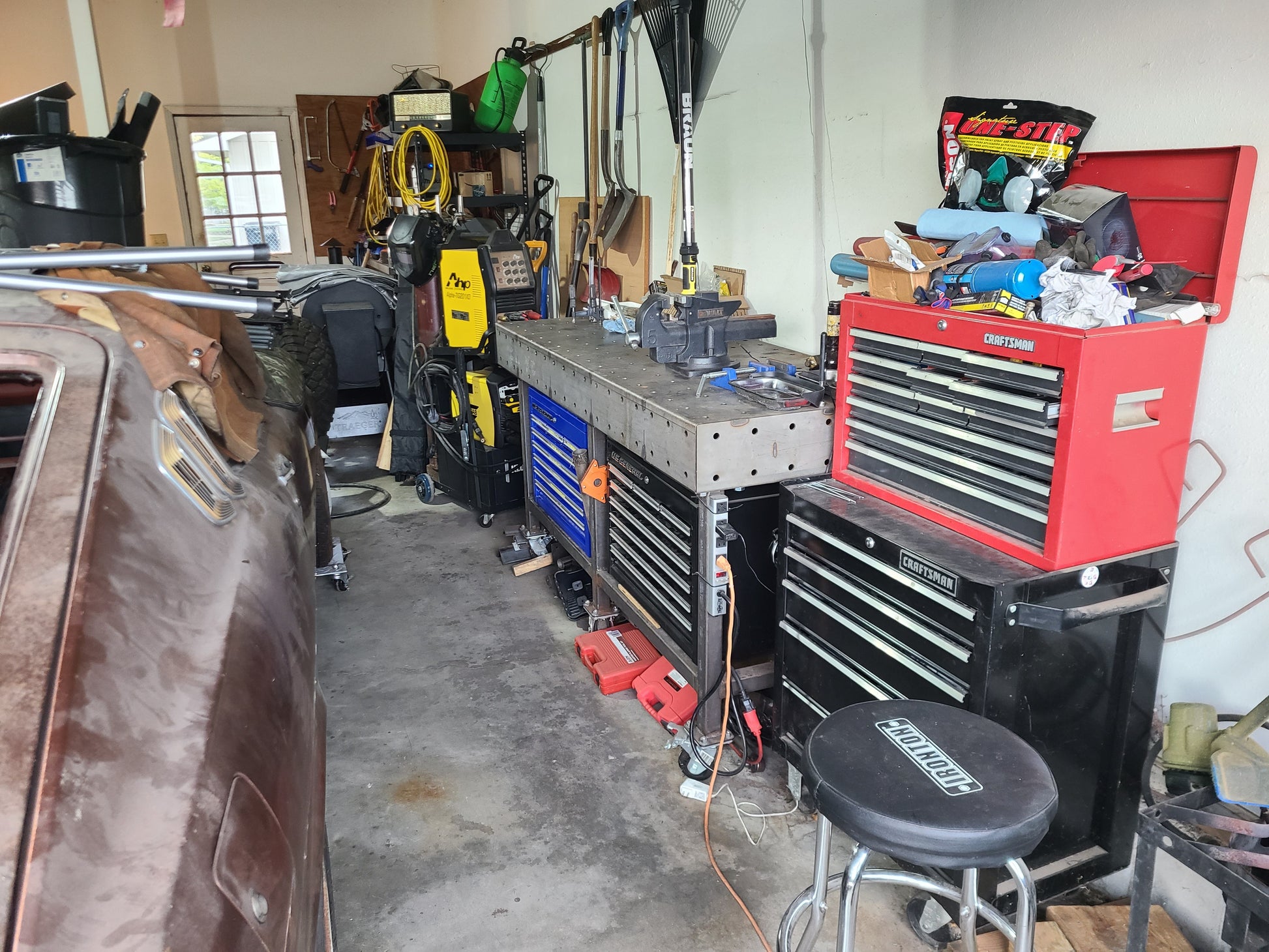

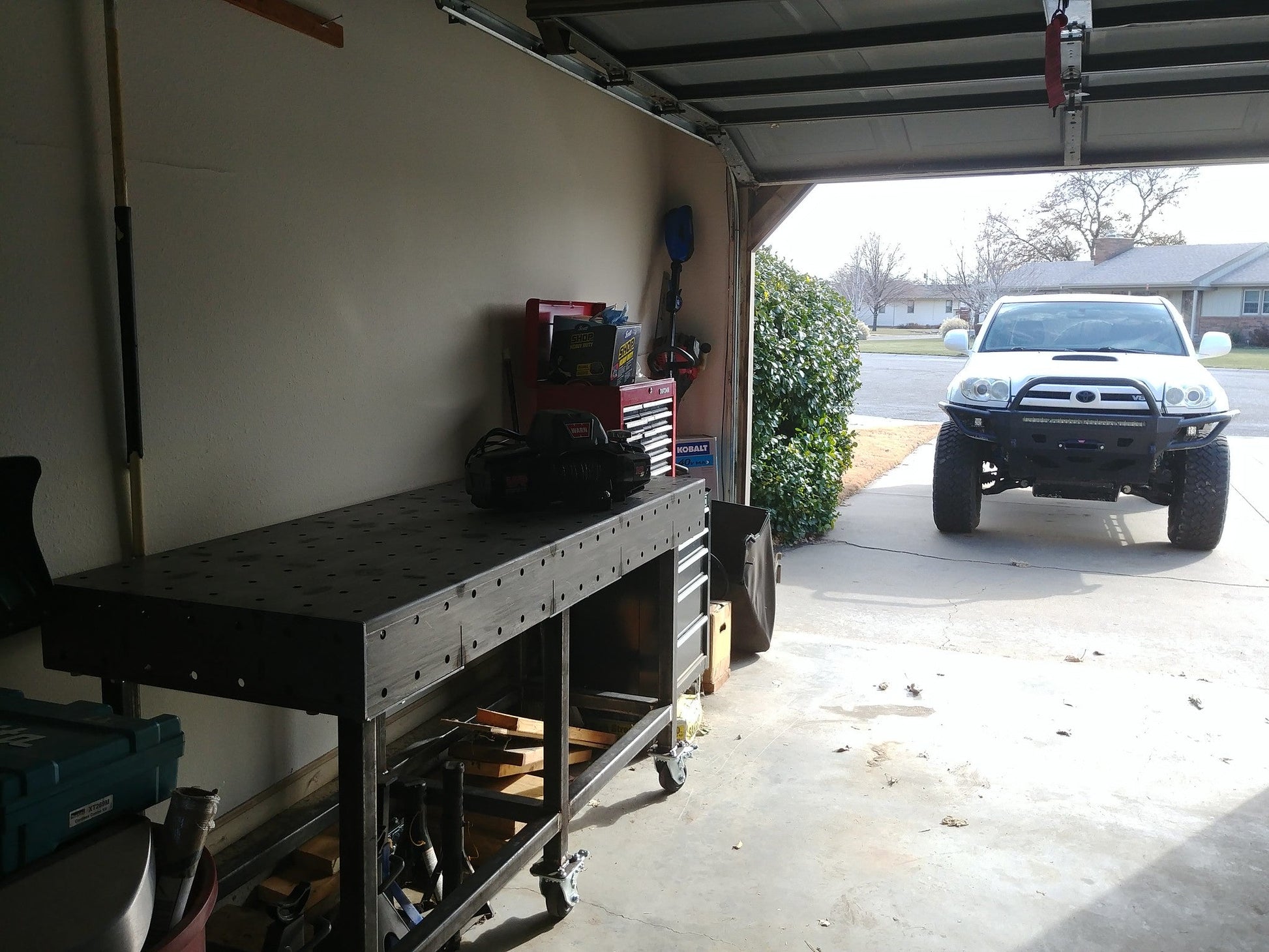

This is the same table I've used for 5 years in my garage welding bumpers together.
No shipping costs or long lead times to deal with. Everything is tabbed for perfect alignment. Comparable tables are $1700+ online.
Material List:
7 gauge steel sheet, 34 sq.ft.
12 gauge steel sheet, 12 sq.ft.
2" square .120" wall tube, 28 foot
Included With Download Link:
PDF and DWG sheet metal bend drawing
Individual 2D DXF files for CNC laser/plasma cutting
Please don't distribute these files
Needed to finish:
(6) 4" Caster Wheels with 3.25" x 2.75" bolt pattern plus hardware
(24) 1/2" or M14 Bolts and Nuts
