2005-2015 Tacoma Transmission Cooler Bracket Kit
2005-2015 Tacoma Transmission Cooler Bracket Kit
DUE TO BE BACK IN STOCK ON 11/22. ALL ORDERS FOR THE SECOND GEN TACOMA BRACKET WILL SHIP THEN.
These CNC pressbroke .125" thick 5052 aluminum brackets are designed to make transmission cooler installs a breeze for all automatic transmission 2nd gen (2005-2015) Tacomas! These fit the Hayden 678, Hayden 698, and Derale 13613 transmission coolers. The Hayden coolers are identical in size but the 698 is equipped with an internal temperature bypass which helps the fluid get up to operating temperature faster, recommended for colder climates. Reduce wear on the transmission by keeping temperatures cooler!

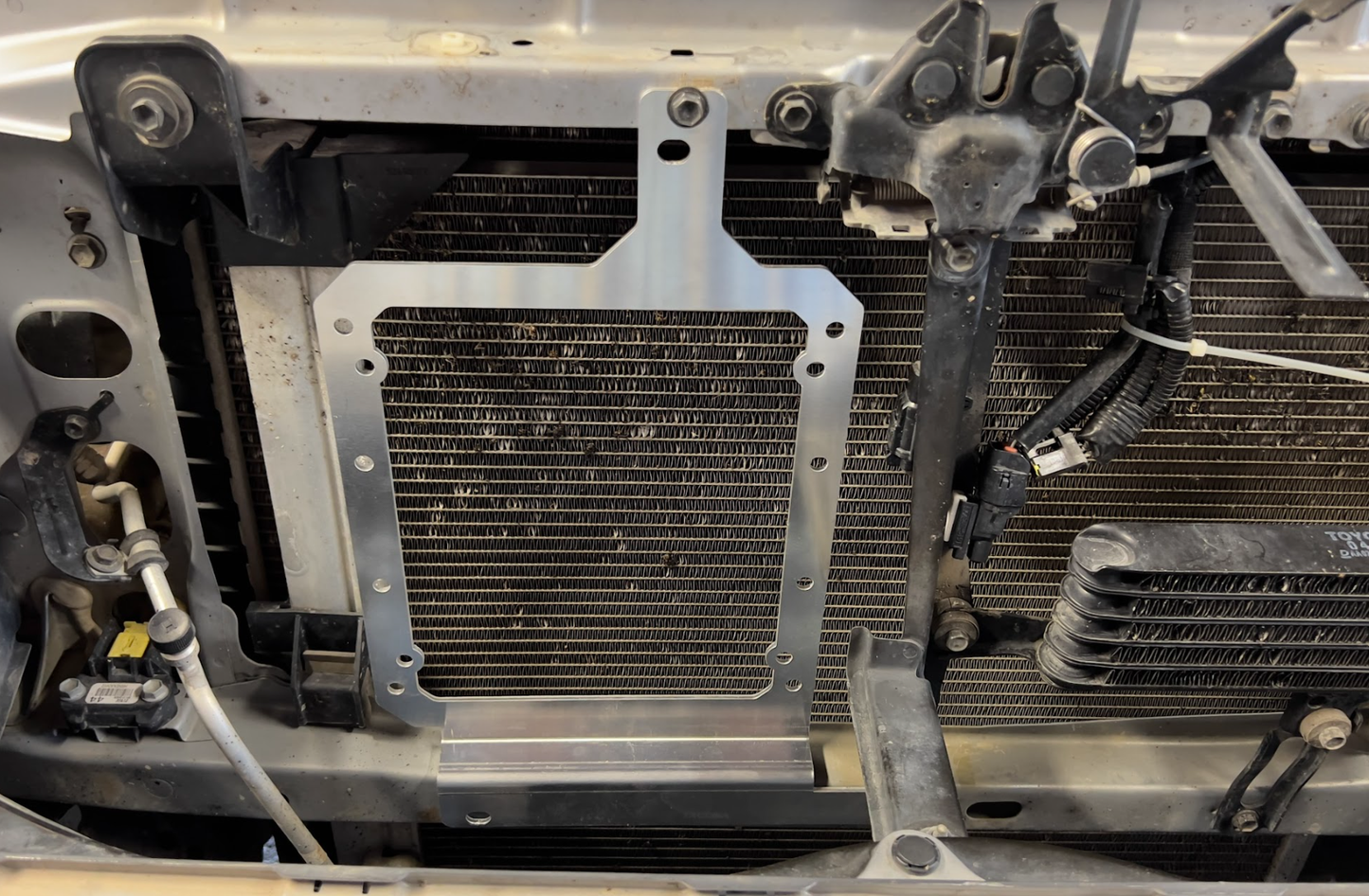

For those Tacomas already equipped with the small factory cooler, you have the option of bypassing and removing that cooler or adding the axillary cooler to this system (recommended) for additional heat dissipation. Trimming of the hood latch guard will be necessary for fitment.
Read more about the Hayden cooler bypass technology here:

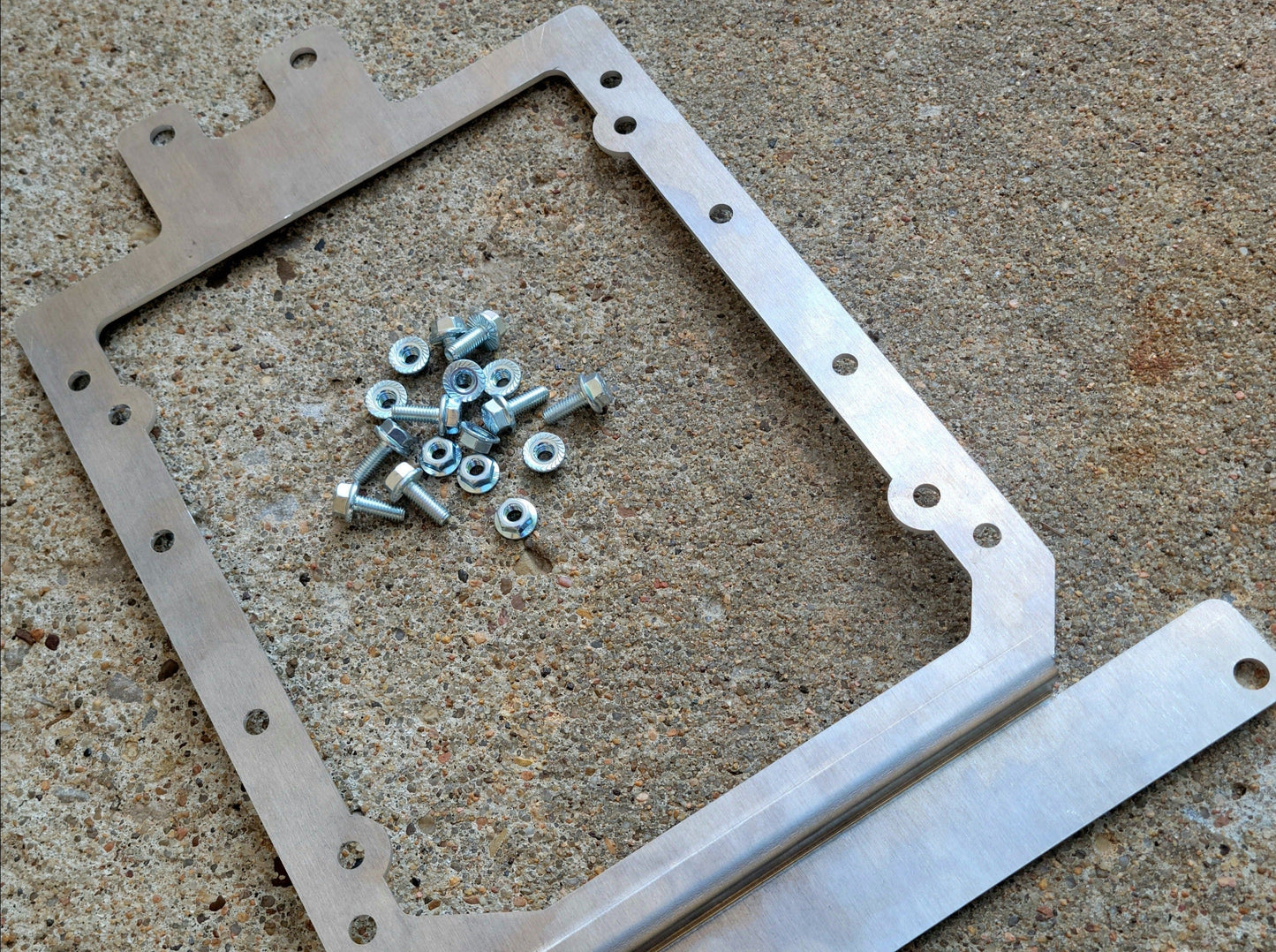

Included with the "Bracket Only" option:
- Bracket
- All required fasteners

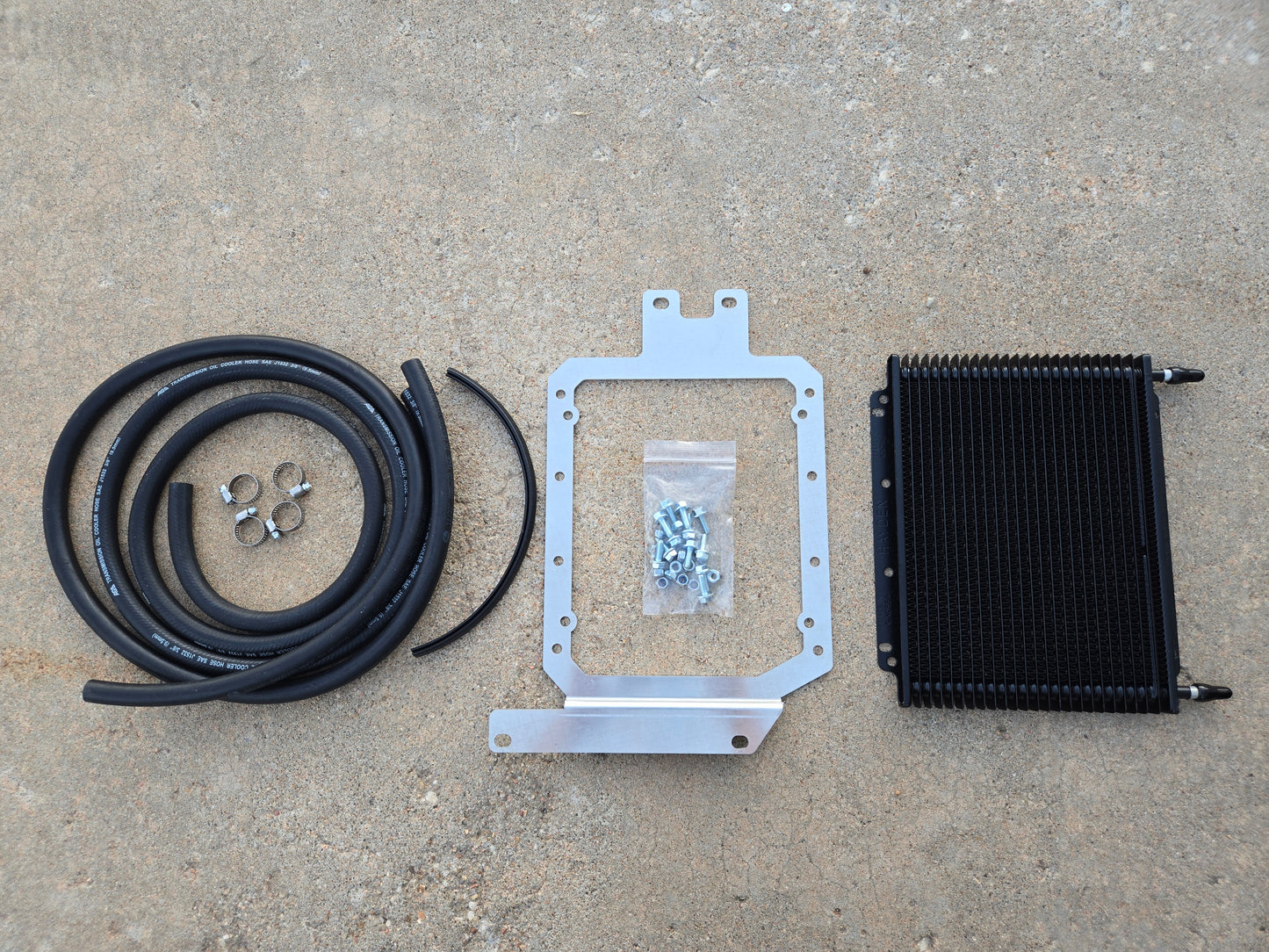

Included with the "Hayden 678 Kit" option:
- Bracket
- All required fasteners
- Hayden 678 (non-bypass) cooler
- Additional length of 3/8" transmission hose to complete install
- Edge trim guard
- (4) hose clamps
Included with the "Hayden 698 Kit" option:
- Bracket
- All required fasteners
- Hayden 698 (bypass) cooler
- Additional length of 3/8" transmission hose to complete install
- Edge trim guard
- (4) hose clamps
If you purchase a kit option all you need to complete the install is a quart of your favorite automatic transmission fluid. I recommend Toyota WS ATF or Valvoline Maxlife.
Unfortunately I'm not offering a Derale specific kit at this time.
